ZF 5 HP-24A Teardown: Step 9: Clutches A and B

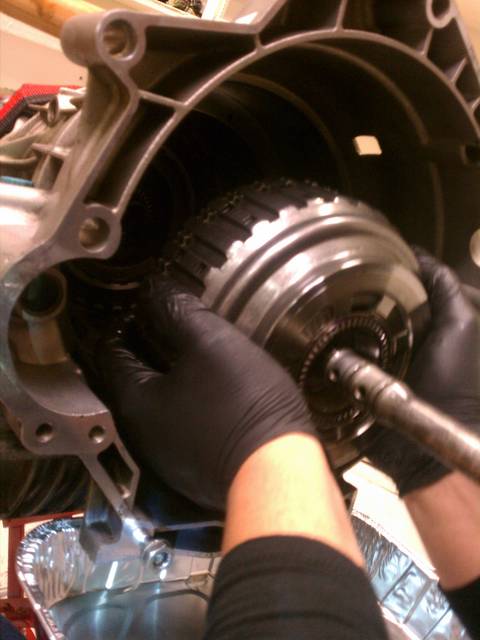

We removed the A clutch, B clutch, input shaft and the intermediate shaft as a unit.

2015-12-19 18.40.48

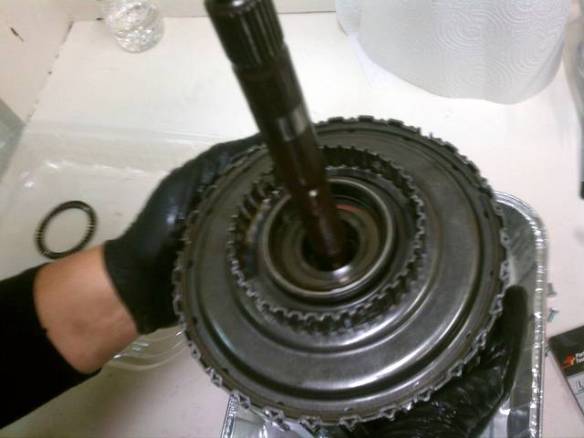

Here is a picture of the assembly, being held above a drip tray, intermediate shaft pointing upwards.

2015-12-19 18.49.42

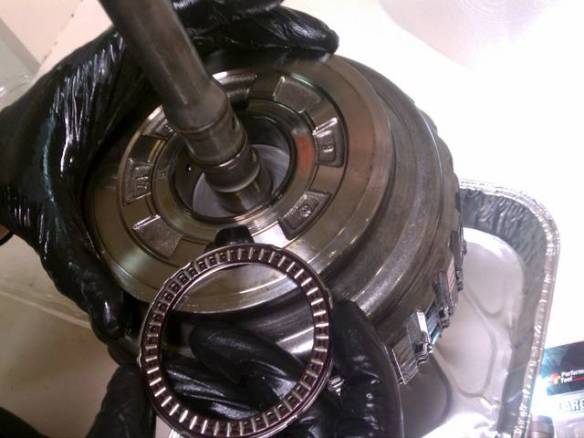

Here is a picture of the assembly, being held above a drip tray, input shaft pointing upwards. The picture also shows the bearing that fits between this assembly and the oil pump.

2015-12-19 18.47.36

Here is what remains of the transmission afterwards.

2015-12-19 19.27.15
